AC050000A1009J6BCS · Shunt Resistor 10Ω ±5% ±200ppm/℃ 5W

AC050000A1009J6BCS (Shunt Resistor 10Ω ±5% ±200ppm/℃ 5W from VISHAY) comes in a Through Hole,D10xL18mm package. Reference unit price: US$0.720, minimum order 100 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

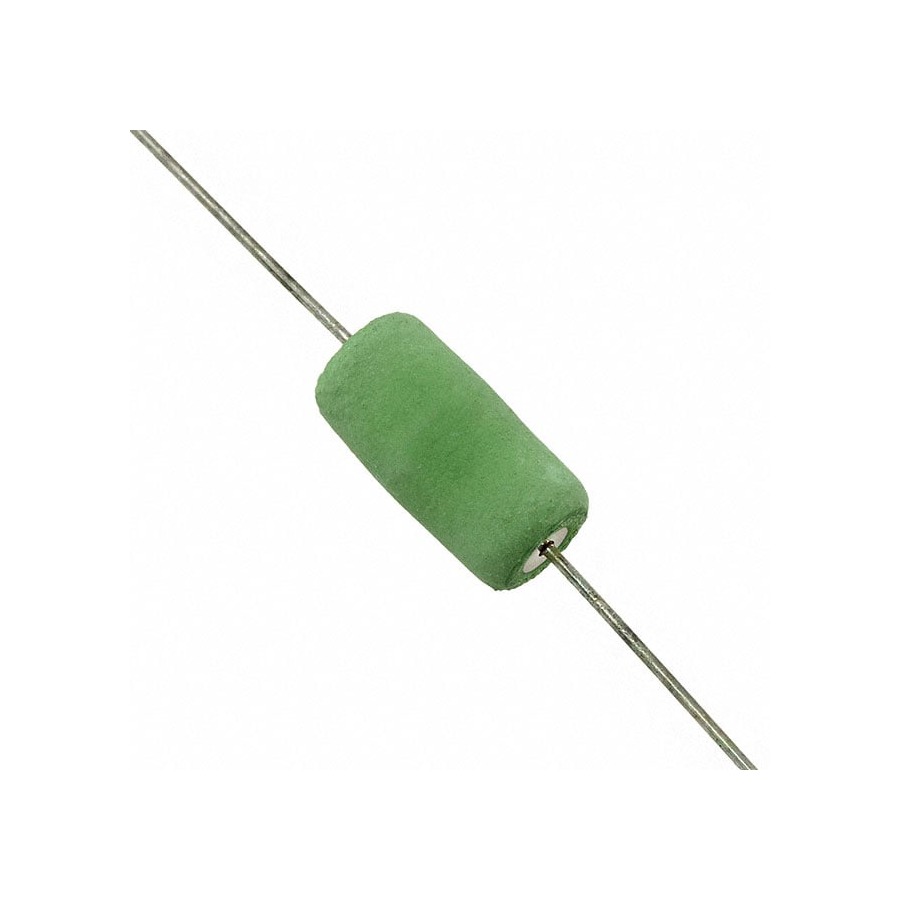

AC050000A1009J6BCS Shunt Resistor 10Ω ±5% ±200ppm/℃ 5W
Part numberAC050000A1009J6BCS
ManufacturerVISHAY
DescriptionShunt Resistor 10Ω ±5% ±200ppm/℃ 5W
PackageThrough Hole,D10xL18mm
CategoryResistors / Shunt Resistors
Reference priceUS$0.720
Min. order100 pcs
AvailabilityIn stock
Reference stock45 pcs

AC050000A1009J6BCS price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.720In stock
10 pcs and upUS$0.577In stock
30 pcs and upUS$0.505In stock
250 pcs and upUS$0.435In stock
500 pcs and upUS$0.393In stock
1000 pcs and upUS$0.371In stock

AC050000A1009J6BCS specifications

Resistance10Ω
Power Rating5W
TypeWirewound Resistor
Temperature Coefficient±200ppm/℃
Tolerance±5%
Operating Temperature-40℃~+200℃

About the Shunt Resistor 10Ω ±5% ±200ppm/℃ 5W

AC050000A1009J6BCS is VISHAY's Shunt Resistor 10Ω ±5% ±200ppm/℃ 5W, Through Hole,D10xL18mm package. Typical use is measuring current in a DC-DC loop, battery management or motor drive, where the voltage across it is read by a sense amplifier. These are chosen for low resistance and low temperature coefficient, because the sense voltage is small and drift shows up directly as current error. Watch the power rating and the four-terminal (Kelvin) layout. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

Replacement checks:
  • Do not interchange this part with the 100Ω AC05000001000JAC00 version. The sense gain changes by roughly one order of magnitude, so amplifier gain, calibration constants and overcurrent thresholds must be reviewed together.
  • Calculate the voltage and dissipation across 10Ω at the intended full-scale current, then check the sense amplifier's common-mode range and input swing. If the original design used a milliohm shunt, this burden may exceed the input range.
  • Check the D10×18mm body, lead spacing and mounting holes; the diameter is larger than the D7.5 version. Also verify lead temperature, nearby clearance and the exact four-terminal sensing points.
Direct answer: AC050000A1009J6BCS is a Vishay 10Ω, ±5%, 5W wirewound current-sense resistor in a through-hole package measuring about D10×18mm. The listed temperature coefficient is ±200ppm/°C and the operating range is -40 to 200°C. It is not a simple suffix change from the 100Ω part in the same family: resistance directly changes the current-to-voltage scale. Recalculate full-scale burden, sense gain and dissipation, and check whether the larger D10 body fits the existing assembly. Reviewed 2026-11-20

AC050000A1009J6BCS — frequently asked questions

Is AC050000A1009J6BCS in stock?

Reference availability: 45 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does AC050000A1009J6BCS cost?

Reference unit price is US$0.720, minimum order 100 pcs. Tiered pricing: 1 pcs and up: US$0.720, 10 pcs and up: US$0.577, 30 pcs and up: US$0.505, 250 pcs and up: US$0.435, 500 pcs and up: US$0.393, 1000 pcs and up: US$0.371. Send us your required quantity for a firm quotation.

What package and brand is AC050000A1009J6BCS?

AC050000A1009J6BCS is manufactured by VISHAY in a Through Hole,D10xL18mm package, filed under Resistors / Shunt Resistors. AC050000A1009J6BCS is VISHAY's Shunt Resistor 10Ω ±5% ±200ppm/℃ 5W, Through Hole,D10xL18mm package. Typical use is measuring current in a DC-DC loop, battery management or motor drive, where the voltage across it is read by a sense amplifier. These are chosen for low resistance and low temperature coefficient, because the sense voltage is small and drift shows up directly as current error. Watch the power rating and the four-terminal (Kelvin) layout. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for AC050000A1009J6BCS?

The minimum order quantity for AC050000A1009J6BCS is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for AC050000A1009J6BCS?

Yes. Send us the original part number or the key parameters (Resistance, Power Rating, Type) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for AC050000A1009J6BCS?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
