744284101 · Common Mode Choke Horizontal, 4 PC Pad

744284101 (Common Mode Choke Horizontal, 4 PC Pad from Würth) comes in a Horizontal, 4 PC Pad package. Reference unit price: Request quote, minimum order 100 pcs. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

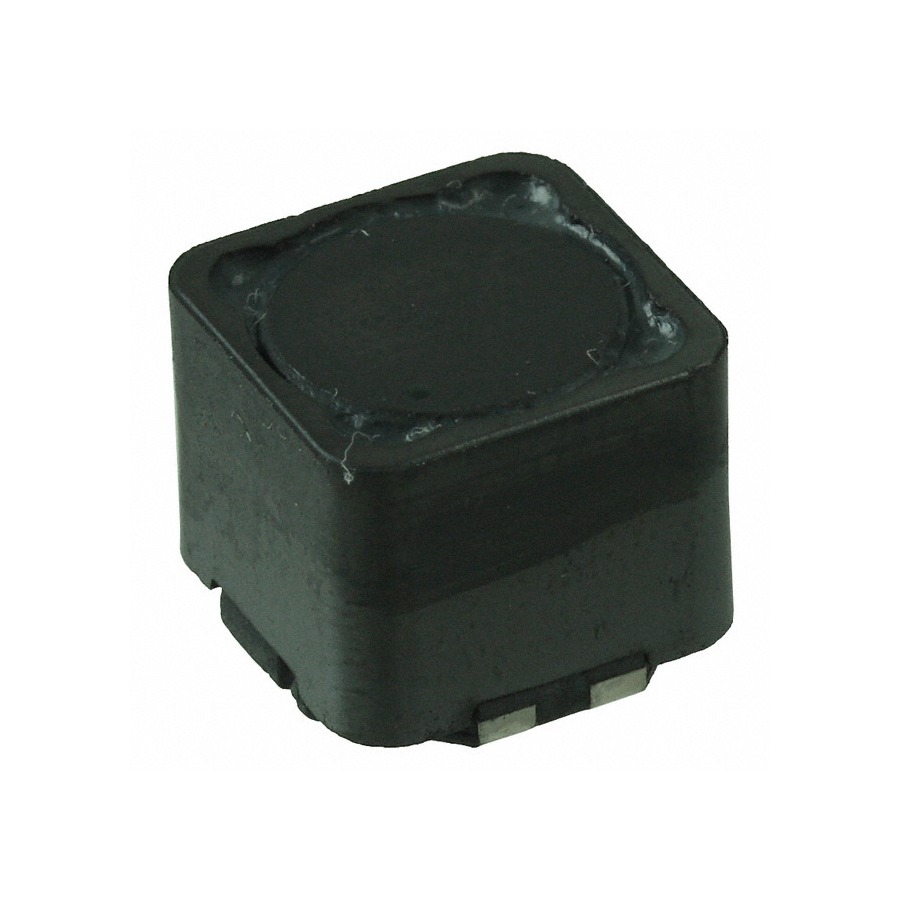

744284101 Common Mode Choke Horizontal, 4 PC Pad
Part number744284101
ManufacturerWürth
DescriptionCommon Mode Choke Horizontal, 4 PC Pad
PackageHorizontal, 4 PC Pad
CategoryInductors & Ferrite Beads / Common Mode Chokes
Reference priceRequest quote
Min. order100 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

744284101 price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

744284101 specifications

Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency40 kOhms @ 4 MHz
Inductance @ Frequency100 µH @ 100 kHz
Current Rating (Max)1A
DC Resistance (DCR) (Max)280mOhm
Voltage Rating - DC80V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount

About the Common Mode Choke Horizontal, 4 PC Pad

744284101 is Würth's Common Mode Choke Horizontal, 4 PC Pad. Typical use is common-mode EMI suppression on the input of a power supply or on a differential data pair. Check the impedance at the frequency of the noise, not just the headline number, and make sure the rated current and DCR fit the line. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

744284101 — frequently asked questions

Is 744284101 in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 744284101 cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is 744284101?

744284101 is manufactured by Würth in a Horizontal, 4 PC Pad package, filed under Inductors & Ferrite Beads / Common Mode Chokes. 744284101 is Würth's Common Mode Choke Horizontal, 4 PC Pad. Typical use is common-mode EMI suppression on the input of a power supply or on a differential data pair. Check the impedance at the frequency of the noise, not just the headline number, and make sure the rated current and DCR fit the line. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

What is the minimum order quantity for 744284101?

The minimum order quantity for 744284101 is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 744284101?

Yes. Send us the original part number or the key parameters (Filter Type, Number of Lines, Impedance @ Frequency) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 744284101?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Common Mode Chokes parts

Need 744284101?

Genuine parts · small-batch trial runs · full BOM kitting

How to order 744284101

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (100 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
