634008149821 · Shielded Right-Angle RJ45 Jack

634008149821 (Shielded Right-Angle RJ45 Jack from Würth) comes in a SMD package. Reference unit price: Request quote, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

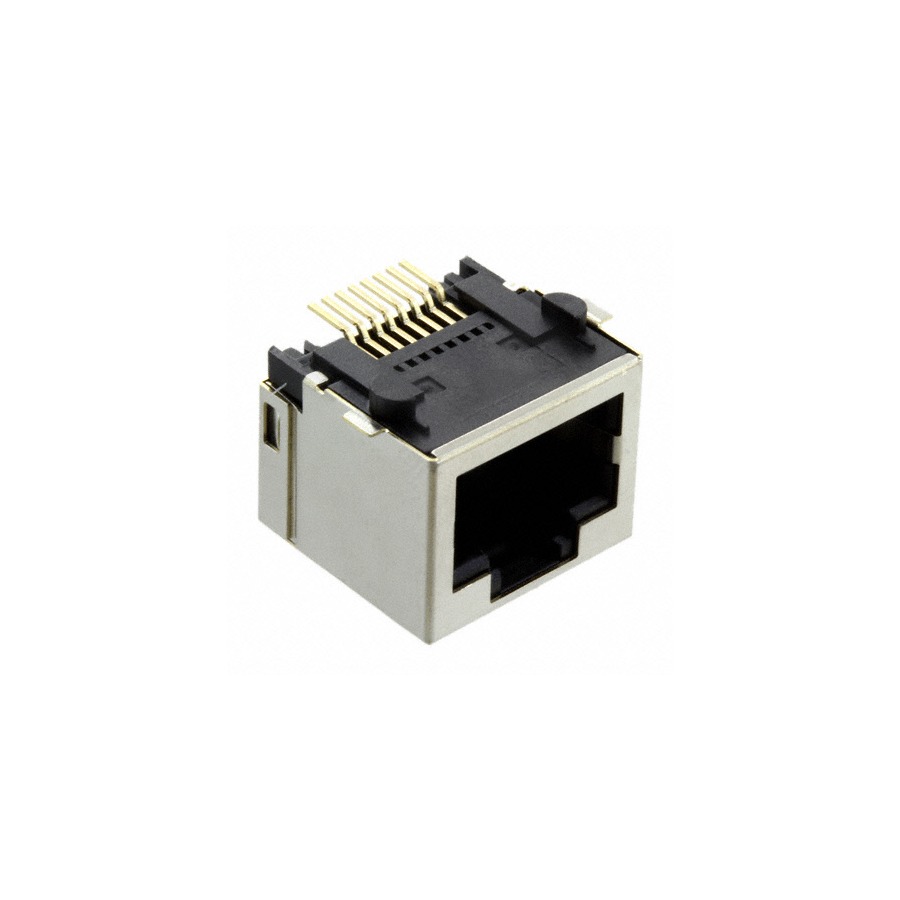

634008149821 Shielded Right-Angle RJ45 Jack
Part number634008149821
ManufacturerWürth
DescriptionShielded Right-Angle RJ45 Jack
PackageSMD
CategoryConnectors / Ethernet Jacks
Reference priceRequest quote
Min. order1 pcs
AvailabilityIn stock
Reference stock397,906 pcs

634008149821 price and stock (reference)

No tiered pricing is published for this part — please quote by quantity.

634008149821 specifications

Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Ports1
Number of Rows1
Mounting TypeSurface Mount
Orientation90° Angle (Right)
TerminationSolder
ShieldedShielded
FeaturesBoard Guide

About the Shielded Right-Angle RJ45 Jack

634008149821 is Würth's CONN MOD JACK 8P8C R/A SHIELDED, SMD package. Typical use is the Ethernet port on a router, switch, camera, industrial controller or embedded board. Check the port count, whether it is shielded, and above all whether the magnetics are integrated - a jack without transformers needs external ones and the two are not interchangeable. A public component-market listing currently shows availability; the exact quantity, date code and price are confirmed on inquiry.

8P8C defines the interface family, not whether an Ethernet transformer is integrated. Jacks with and without magnetics differ in internal construction, footprint and routing, so the exact part number must be checked against the schematic.

The listing gives one port, one row, 90-degree right angle, SMD, shielding and board guides. Replacement checks must also cover the panel opening, locating holes, shield tabs, terminal direction and reflow process.

If the equipment requires PoE, link or activity LEDs, or a specific contact plating, verify those items in the manufacturer datasheet and model configuration. They are not present in the current listing and must not be inferred.

For a quote, state the full part number, board use, whether magnetics are required and any LED or PoE requirement. A photo of an RJ45 port is not enough to identify a compatible jack.

Replacement checks:
  • Confirm the exact part number and whether magnetics are integrated.
  • Verify one-port, one-row, right-angle orientation, SMD footprint and board-guide positions.
  • Check shield tabs, panel opening, LEDs and PoE requirements.
  • Before replacement, compare contact assignment, plating, reflow process and PCB thickness.
Direct answer: 634008149821 is a Würth Elektronik 8P8C RJ45 jack listed as one port, one row, 90-degree right angle, SMD, shielded and with board guides. The listing does not state whether magnetics, LEDs, PoE capability or a specific contact plating are included. Check the manufacturer drawing before replacement; another right-angle shielded 8P8C jack is not automatically interchangeable. Reviewed 2026-11-20

634008149821 — frequently asked questions

Can 634008149821 be swapped with another shielded 8P8C jack?

Not from 8P8C, shielding and right-angle shape alone. Check magnetics, footprint, locating posts, terminal direction, LEDs and PoE requirements.

Does this part include Ethernet magnetics?

The current listing does not state that. Check the manufacturer drawing and full specification for the exact part number instead of inferring.

What must be confirmed for a PoE design?

Check current and temperature conditions, contact configuration, magnetics and PoE-related specifications. The existing website data is not enough by itself.

Related Ethernet Jacks parts

Need 634008149821?

Genuine parts · small-batch trial runs · full BOM kitting

How to order 634008149821

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
