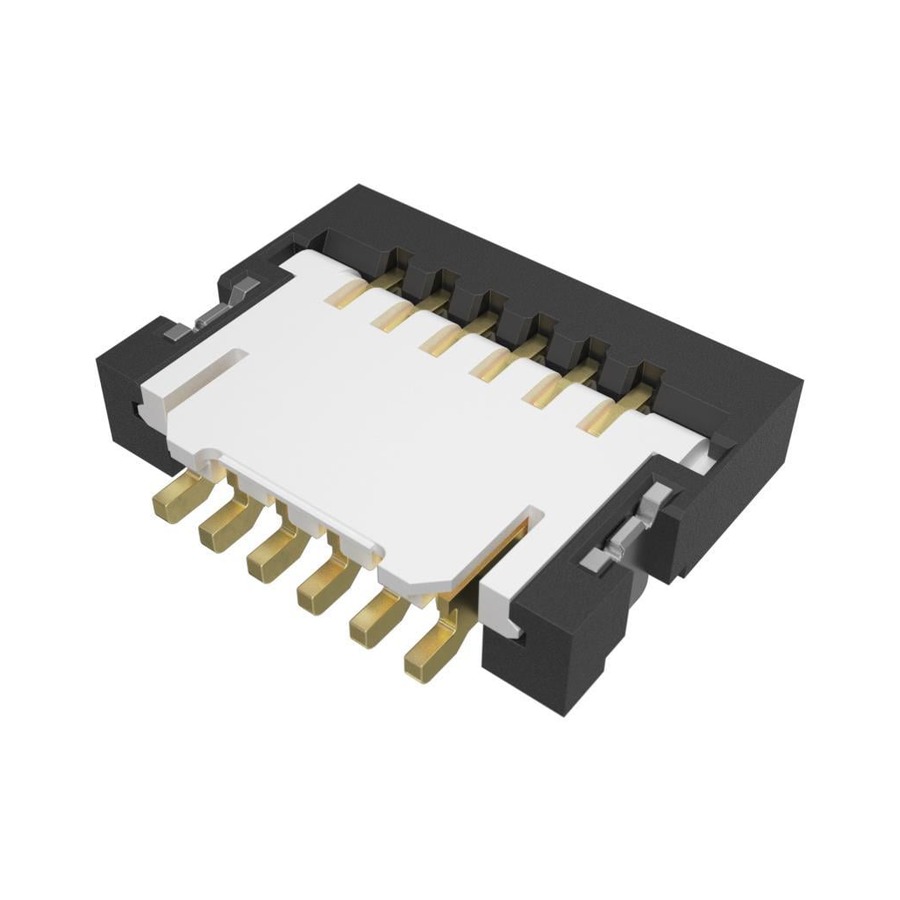

59453-062110ECHLF · Wire-to-Board Connector FPC 6-bit 0.5mm horizontal SMD

59453-062110ECHLF (Wire-to-Board Connector FPC 6-bit 0.5mm horizontal SMD from Amphenol) comes in a Tape & Reel (TR) package. Reference unit price: US$0.559, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

59453-062110ECHLF Wire-to-Board Connector FPC 6-bit 0.5mm horizontal SMD
Part number59453-062110ECHLF
ManufacturerAmphenol
DescriptionWire-to-Board Connector FPC 6-bit 0.5mm horizontal SMD
PackageTape & Reel (TR)
CategoryConnectors / Wire-to-Board Connectors
Reference priceUS$0.559
Min. order1 pcs
AvailabilityIn stock
Reference stock4 pcs

59453-062110ECHLF price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.559In stock
10 pcs and upUS$0.445In stock
30 pcs and upUS$0.388In stock

59453-062110ECHLF specifications

Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions6
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.20mm
Height Above Board0.035" (0.88mm)
Locking FeatureFlip Lock

About the Wire-to-Board Connector FPC 6-bit 0.5mm horizontal SMD

59453-062110ECHLF is Amphenol's Wire-to-Board Connector CONN FPC TOP 6POS 0.5MM R/A, Tape & Reel (TR) package. It joins a cable harness to the board - the classic power and signal link between a main board and a battery pack, fan, sensor or sub-board. Pitch, pin count, orientation and the mating housing all have to match, and the header and its cable housing are usually a matched pair. Check the current rating for the wire gauge in use. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

59453-062110ECHLF — frequently asked questions

Is 59453-062110ECHLF in stock?

Reference availability: 4 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 59453-062110ECHLF cost?

Reference unit price is US$0.559, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.559, 10 pcs and up: US$0.445, 30 pcs and up: US$0.388. Send us your required quantity for a firm quotation.

What package and brand is 59453-062110ECHLF?

59453-062110ECHLF is manufactured by Amphenol in a Tape & Reel (TR) package, filed under Connectors / Wire-to-Board Connectors. 59453-062110ECHLF is Amphenol's Wire-to-Board Connector CONN FPC TOP 6POS 0.5MM R/A, Tape & Reel (TR) package. It joins a cable harness to the board - the classic power and signal link between a main board and a battery pack, fan, sensor or sub-board. Pitch, pin count, orientation and the mating housing all have to match, and the header and its cable housing are usually a matched pair. Check the current rating for the wire gauge in use. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for 59453-062110ECHLF?

The minimum order quantity for 59453-062110ECHLF is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 59453-062110ECHLF?

Yes. Send us the original part number or the key parameters (Flat Flex Type, Mounting Type, Connector/Contact Type) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 59453-062110ECHLF?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Wire-to-Board Connectors parts

Need 59453-062110ECHLF?

Genuine parts · small-batch trial runs · full BOM kitting

How to order 59453-062110ECHLF

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
