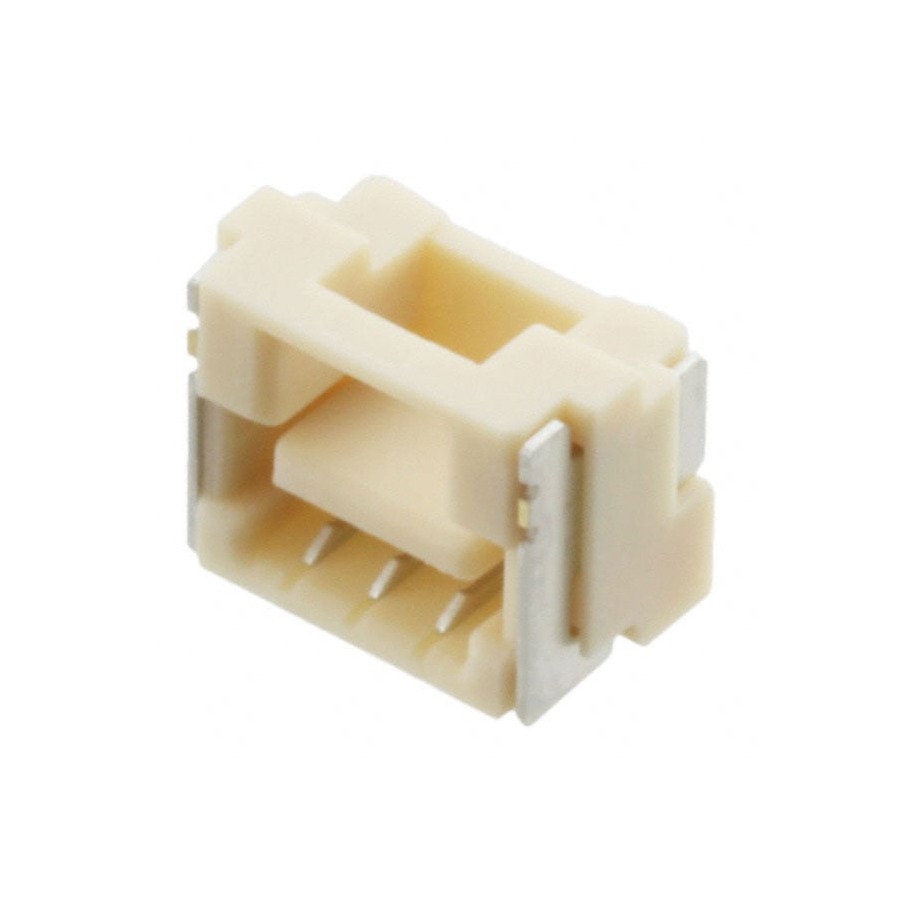

5023820372 · Wire-to-Board Connector 1A 1.25mm SMD,P=1.25mm
5023820372 (Wire-to-Board Connector 1A 1.25mm SMD,P=1.25mm from Molex) comes in a SMD,P=1.25mm package. Reference unit price: ¥4.9589, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | 5023820372 |
| Manufacturer | Molex |
| Description | Wire-to-Board Connector 1A 1.25mm SMD,P=1.25mm |
| Package | SMD,P=1.25mm |
| Category | Connectors / Wire-to-Board Connectors |
| Reference price | ¥¥4.9589 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 1,597 pcs |
5023820372 tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥4.9589 | In stock |
| 2800 pcs and up | ¥4.7223 | In stock |
| 4200 pcs and up | ¥4.5892 | In stock |
| 7000 pcs and up | ¥4.4268 | In stock |
| 9800 pcs and up | ¥4.3231 | In stock |
| 14000 pcs and up | ¥4.2158 | In stock |
5023820372 specifications
| Number of PINs | 3P |
| Rated Current | 1A |
| Operating Temperature | -40℃~+105℃ |
| Mounting Type | Surface Mount,Vertical |
| Number of PINs Per Row | 3 |
| Pitch | 1.25mm |
| Rows | 1 |
| Pin Structure | 1x3P |
| Y轴 -板上底边宽度 | 5.45mm |
About the Wire-to-Board Connector 1A 1.25mm SMD,P=1.25mm
Molex 3 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin. In stock — 1,597 pcs available.
5023820372 — frequently asked questions
Reference availability: 1,597 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥4.9589, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥4.9589, 2800 pcs and up: ¥4.7223, 4200 pcs and up: ¥4.5892, 7000 pcs and up: ¥4.4268, 9800 pcs and up: ¥4.3231, 14000 pcs and up: ¥4.2158. Send us your required quantity for a firm quotation.
5023820372 is manufactured by Molex in a SMD,P=1.25mm package, filed under Connectors / Wire-to-Board Connectors. Molex 3 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin. In stock — 1,597 pcs available.
The minimum order quantity for 5023820372 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Number of PINs, Rated Current, Operating Temperature) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
