Resistors Potentiometers · BOURNS

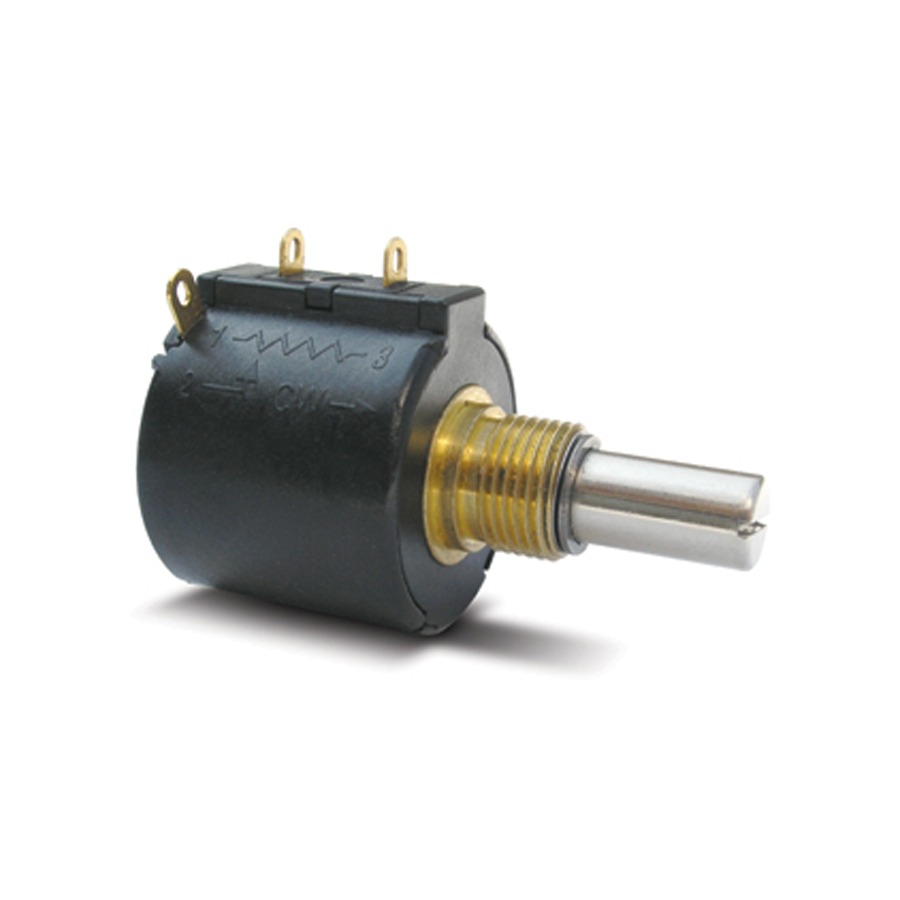

3549S-1BA-103B · Potentiometer ±3% ±50ppm/°C 2W Through-Hole

3549S-1BA-103B (Potentiometer ±3% ±50ppm/°C 2W Through-Hole from BOURNS) comes in a Through-Hole package. Reference unit price: Request quote, minimum order 100 pcs. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

3549S-1BA-103B Potentiometer ±3% ±50ppm/°C 2W Through-Hole
Part number3549S-1BA-103B
ManufacturerBOURNS
DescriptionPotentiometer ±3% ±50ppm/°C 2W Through-Hole
PackageThrough-Hole
CategoryResistors / Potentiometers
Reference priceRequest quote
Min. order100 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

3549S-1BA-103B price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

3549S-1BA-103B specifications

Resistance (Ohms)10k
Tolerance±3%
Power Rating2W
Built in SwitchNone
Number of Turns10.0
TaperLinear
Number of Gangs1
Adjustment TypeUser Defined
Dielectric±50ppm/°C

About the Potentiometer ±3% ±50ppm/°C 2W Through-Hole

3549S-1BA-103B is BOURNS's Potentiometer ±3% ±50ppm/°C 2W Through-Hole. Typical use is one-off calibration of a reference, gain or bias, and panel level or volume control. Check the turn count and the taper first: multi-turn types are for fine trim, single-turn linear ones for panel control. Trimmer resistance tolerance is loose, so do not rely on it for absolute accuracy. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

Replacement checks:
  • Confirm that the design requires a 10-turn linear trim control rather than a single-turn panel potentiometer or a logarithmic taper. Turn count and taper change both the adjustment range and the control behavior.
  • Review 2W derating at the actual voltage, ambient temperature and shaft position, and obtain the datasheet wiper-current limit. The track power rating does not automatically apply to the wiper circuit.
  • The current data does not specify shaft length, shaft diameter, bushing, mounting thread or pin arrangement. Obtain the manufacturer mechanical drawing and trial-fit the installation and shaft travel.
Direct answer: 3549S-1BA-103B is a Bourns 10k, ±3%, 2W through-hole potentiometer with 10 turns, a linear taper, one gang and no built-in switch. The listed temperature coefficient is ±50ppm/°C. It is intended for fine adjustment of a reference, bias or gain, or for panel-level control. The actual resistance depends on wiper position, so the assembly must be calibrated in the target circuit rather than treated as a fixed precision resistor. Reviewed 2026-11-20

3549S-1BA-103B — frequently asked questions

Is 3549S-1BA-103B in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 3549S-1BA-103B cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is 3549S-1BA-103B?

3549S-1BA-103B is manufactured by BOURNS in a Through-Hole package, filed under Resistors / Potentiometers. 3549S-1BA-103B is BOURNS's Potentiometer ±3% ±50ppm/°C 2W Through-Hole. Typical use is one-off calibration of a reference, gain or bias, and panel level or volume control. Check the turn count and the taper first: multi-turn types are for fine trim, single-turn linear ones for panel control. Trimmer resistance tolerance is loose, so do not rely on it for absolute accuracy. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

What is the minimum order quantity for 3549S-1BA-103B?

The minimum order quantity for 3549S-1BA-103B is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 3549S-1BA-103B?

Yes. Send us the original part number or the key parameters (Resistance (Ohms), Tolerance, Power Rating) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 3549S-1BA-103B?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Potentiometers parts

Need 3549S-1BA-103B?

Genuine parts · small-batch trial runs · full BOM kitting

How to order 3549S-1BA-103B

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (100 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
