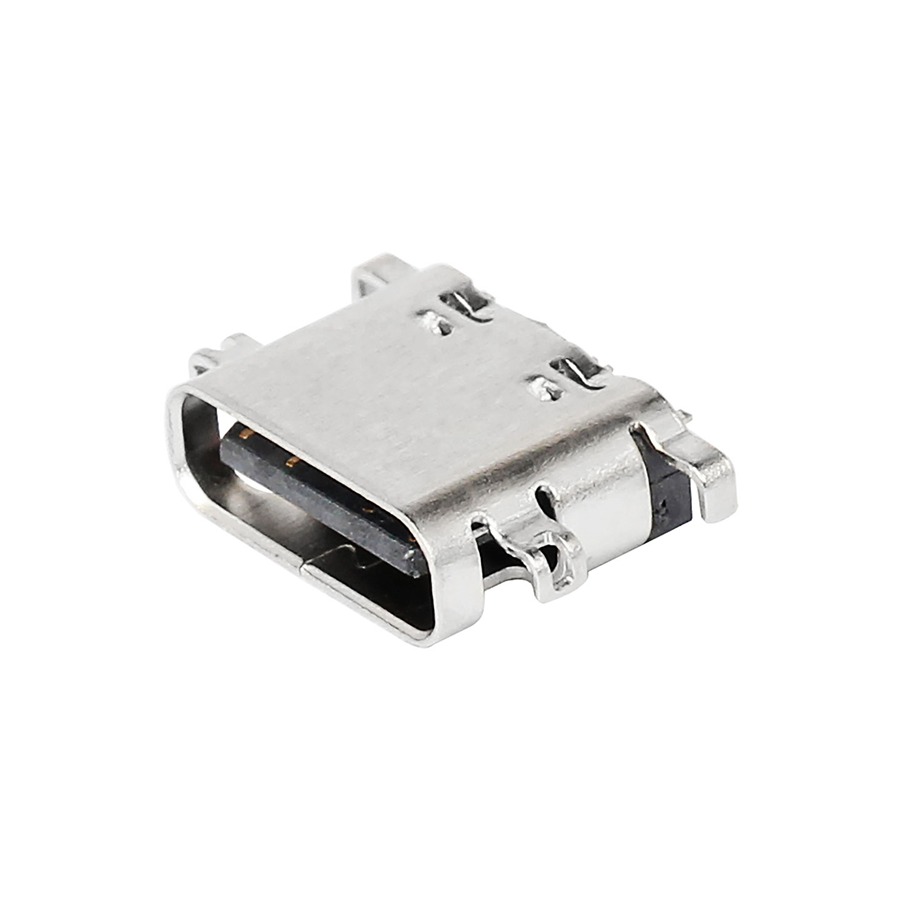

2169900001 · Wire-to-Board Connector 插件
2169900001 (Wire-to-Board Connector 插件 from Molex) comes in a 插件 package. Reference unit price: ¥3.8767, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | 2169900001 |
| Manufacturer | Molex |
| Description | Wire-to-Board Connector 插件 |
| Package | 插件 |
| Category | Connectors / Wire-to-Board Connectors |
| Reference price | ¥¥3.8767 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 1,604 pcs |
2169900001 tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥3.8767 | In stock |
| 2800 pcs and up | ¥3.6917 | In stock |
| 4200 pcs and up | ¥3.5876 | In stock |
| 7000 pcs and up | ¥3.4607 | In stock |
| 9800 pcs and up | ¥3.3795 | In stock |
| 14000 pcs and up | ¥3.2957 | In stock |
2169900001 specifications
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 (16+8 Dummy) |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Termination | Solder |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A |
About the Wire-to-Board Connector 插件
Molex USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through H. In stock — 1,604 pcs available.
2169900001 — frequently asked questions
Reference availability: 1,604 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥3.8767, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥3.8767, 2800 pcs and up: ¥3.6917, 4200 pcs and up: ¥3.5876, 7000 pcs and up: ¥3.4607, 9800 pcs and up: ¥3.3795, 14000 pcs and up: ¥3.2957. Send us your required quantity for a firm quotation.
2169900001 is manufactured by Molex in a 插件 package, filed under Connectors / Wire-to-Board Connectors. Molex USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through H. In stock — 1,604 pcs available.
The minimum order quantity for 2169900001 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Connector Type, Number of Contacts, Gender) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
