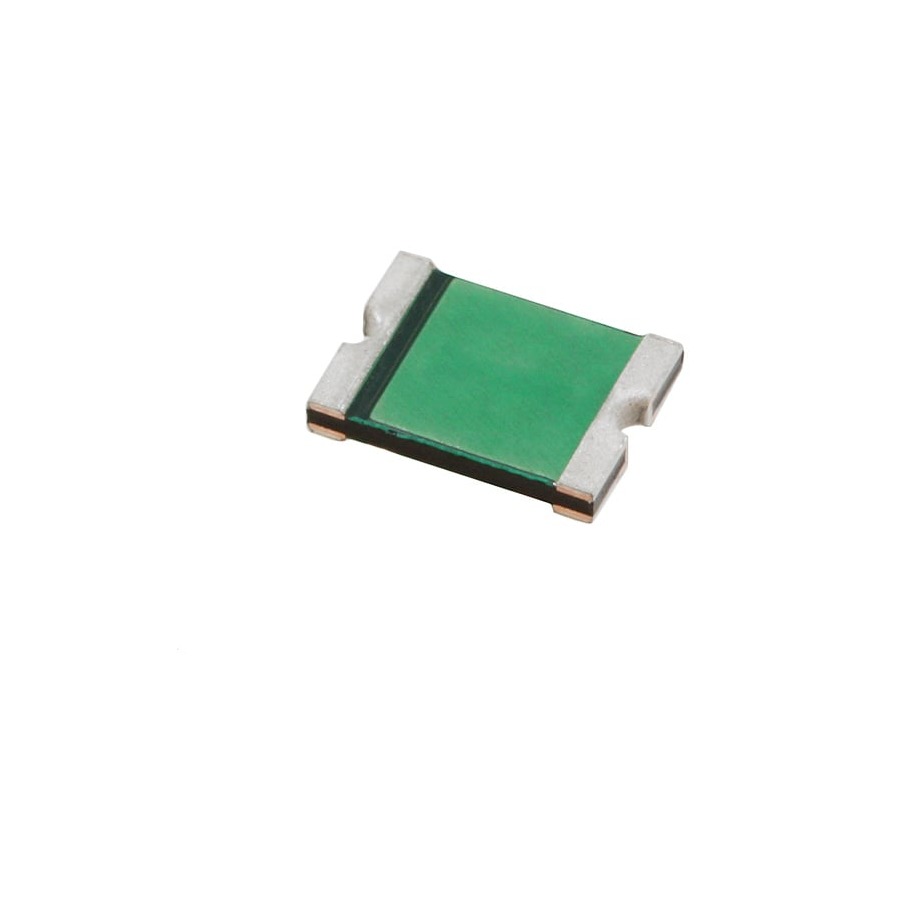

0ZCG0014FF2C · PTC Resettable Fuse Polymeric 1812

0ZCG0014FF2C (PTC Resettable Fuse Polymeric 1812 from Bel Fuse) comes in a 1812 package. Reference unit price: US$0.157, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

0ZCG0014FF2C PTC Resettable Fuse Polymeric 1812
Part number0ZCG0014FF2C
ManufacturerBel Fuse
DescriptionPTC Resettable Fuse Polymeric 1812
Package1812
CategoryFuses & Protection / PTC Resettable Fuses
Reference priceUS$0.157
Min. order1 pcs
AvailabilityIn stock
Reference stock11 pcs

0ZCG0014FF2C price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.157In stock
10 pcs and upUS$0.123In stock
30 pcs and upUS$0.109In stock
100 pcs and upUS$0.091In stock
400 pcs and upUS$0.089In stock
800 pcs and upUS$0.084In stock

0ZCG0014FF2C specifications

TypePolymeric
Voltage Rating60V
Hold Current140 mA
Current - Trip (It)300 mA
Current - Max10 A
Time to Trip8 ms
Resistance - Initial (Ri) (Min)1.2 Ohms
Resistance - Post Trip (R1) (Max)6.5 Ohms
Operating Temperature-40°C ~ 85°C

About the PTC Resettable Fuse Polymeric 1812

0ZCG0014FF2C is Bel Fuse's PTC Resettable Fuse Polymeric 1812. Typical use is resettable protection on USB ports, battery packs and small motors, where a permanent fuse would be inconvenient. These are temperature sensitive and have a hold current and a trip current, not a single rating - check both against the load and consider the ambient temperature, because a hot enclosure trips them early. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

0ZCG0014FF2C — frequently asked questions

Is 0ZCG0014FF2C in stock?

Reference availability: 11 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 0ZCG0014FF2C cost?

Reference unit price is US$0.157, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.157, 10 pcs and up: US$0.123, 30 pcs and up: US$0.109, 100 pcs and up: US$0.091, 400 pcs and up: US$0.089, 800 pcs and up: US$0.084. Send us your required quantity for a firm quotation.

What package and brand is 0ZCG0014FF2C?

0ZCG0014FF2C is manufactured by Bel Fuse in a 1812 package, filed under Fuses & Protection / PTC Resettable Fuses. 0ZCG0014FF2C is Bel Fuse's PTC Resettable Fuse Polymeric 1812. Typical use is resettable protection on USB ports, battery packs and small motors, where a permanent fuse would be inconvenient. These are temperature sensitive and have a hold current and a trip current, not a single rating - check both against the load and consider the ambient temperature, because a hot enclosure trips them early. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for 0ZCG0014FF2C?

The minimum order quantity for 0ZCG0014FF2C is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 0ZCG0014FF2C?

Yes. Send us the original part number or the key parameters (Type, Voltage Rating, Hold Current) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 0ZCG0014FF2C?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
