Fuses & Protection PTC Resettable Fuses · Littelfuse

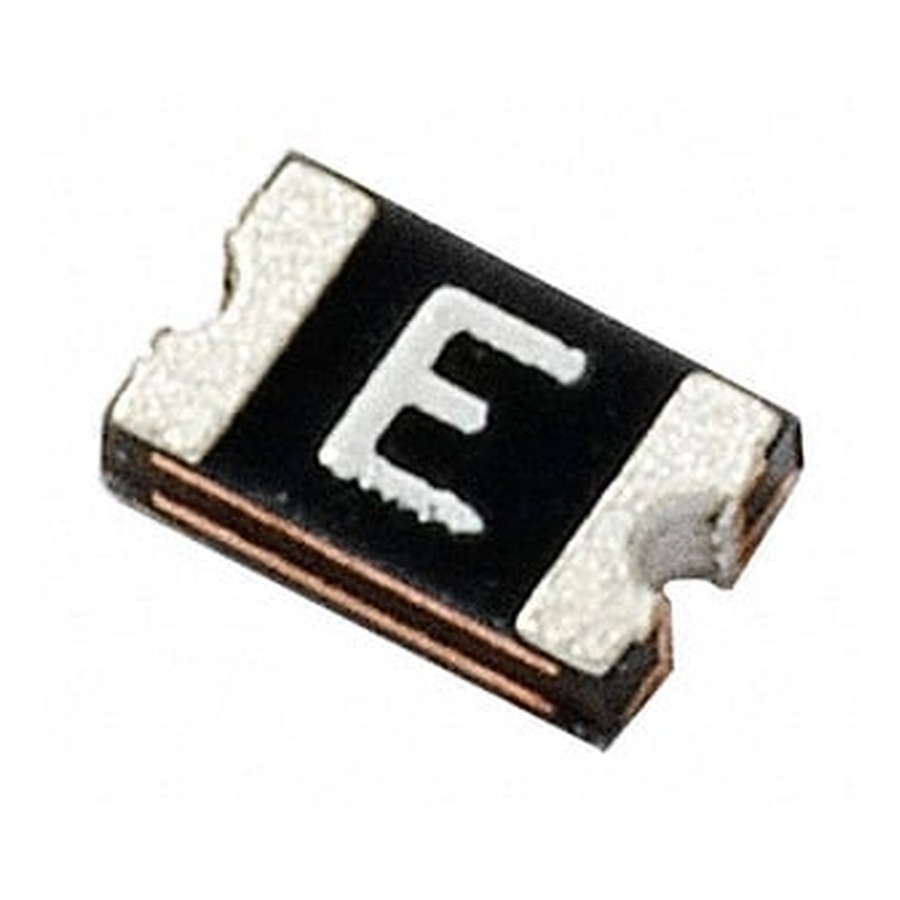

0805L075SLYR · PTC Resettable Fuse 6V 0805

0805L075SLYR (PTC Resettable Fuse 6V 0805 from Littelfuse) comes in a 0805 package. Reference unit price: US$0.237, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

0805L075SLYR PTC Resettable Fuse 6V 0805
Part number0805L075SLYR
ManufacturerLittelfuse
DescriptionPTC Resettable Fuse 6V 0805
Package0805
CategoryFuses & Protection / PTC Resettable Fuses
Reference priceUS$0.237
Min. order1 pcs
AvailabilityIn stock
Reference stock268 pcs

0805L075SLYR price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.237In stock
10 pcs and upUS$0.188In stock
30 pcs and upUS$0.167In stock
100 pcs and upUS$0.141In stock
500 pcs and upUS$0.129In stock

0805L075SLYR specifications

TypePolymeric
Voltage Rating6V
Hold Current750 mA
Current - Trip (It)1.5 A
Current - Max50 A
Time to Trip200 ms
Resistance - Initial (Ri) (Min)40 mOhms
Resistance - Post Trip (R1) (Max)160 mOhms
Operating Temperature-40°C ~ 85°C

About the PTC Resettable Fuse 6V 0805

0805L075SLYR is Littelfuse's PTC Resettable Fuse 6V 0805. It limits current by heating up and going high-resistance, then returns to a conductive state once the fault clears. Look at both hold and trip current, and remember ambient temperature shifts them: the same part holds less current inside a warm enclosure than on an open bench. Availability, batch and lead time are confirmed on inquiry.

0805L075SLYR — frequently asked questions

Is 0805L075SLYR in stock?

Reference availability: 268 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 0805L075SLYR cost?

Reference unit price is US$0.237, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.237, 10 pcs and up: US$0.188, 30 pcs and up: US$0.167, 100 pcs and up: US$0.141, 500 pcs and up: US$0.129. Send us your required quantity for a firm quotation.

What package and brand is 0805L075SLYR?

0805L075SLYR is manufactured by Littelfuse in a 0805 package, filed under Fuses & Protection / PTC Resettable Fuses. 0805L075SLYR is Littelfuse's PTC Resettable Fuse 6V 0805. It limits current by heating up and going high-resistance, then returns to a conductive state once the fault clears. Look at both hold and trip current, and remember ambient temperature shifts them: the same part holds less current inside a warm enclosure than on an open bench. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for 0805L075SLYR?

The minimum order quantity for 0805L075SLYR is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 0805L075SLYR?

Yes. Send us the original part number or the key parameters (Type, Voltage Rating, Hold Current) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 0805L075SLYR?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
